Wavlink 1200Mbps Smart WiFi Router 5Ghz Touchlink AC1200 Dual Band Gigabit Ethernet Router Wi fi Wireless 2.4Ghz WiFi Repeater

Wavlink 1200Mbps Smart WiFi Router 5Ghz Touchlink AC1200 Dual Band Gigabit Ethernet Router Wi fi Wireless 2.4Ghz WiFi Repeater
  • Продавецbooks-in.us
  • Список ценUS $56.24piece
  • Продажная ценаUS $56.24piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (287)

Oписание продукта

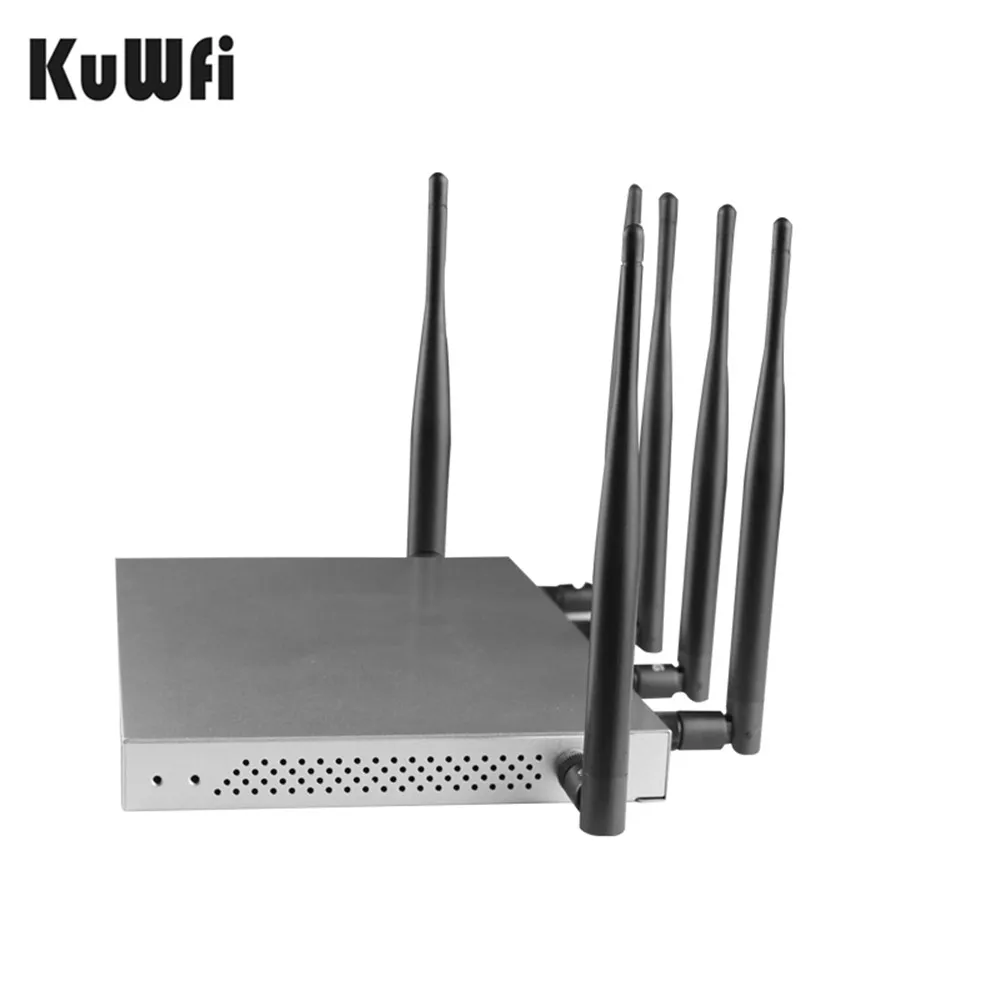

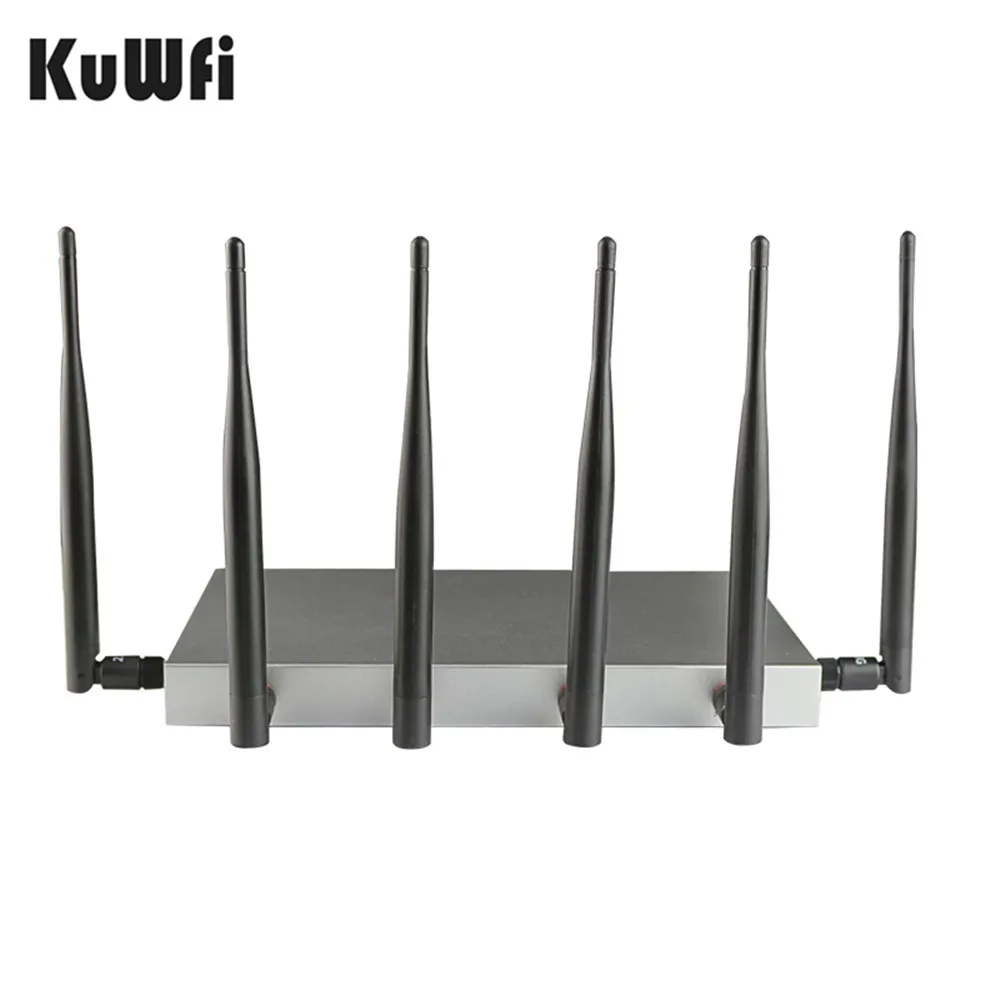

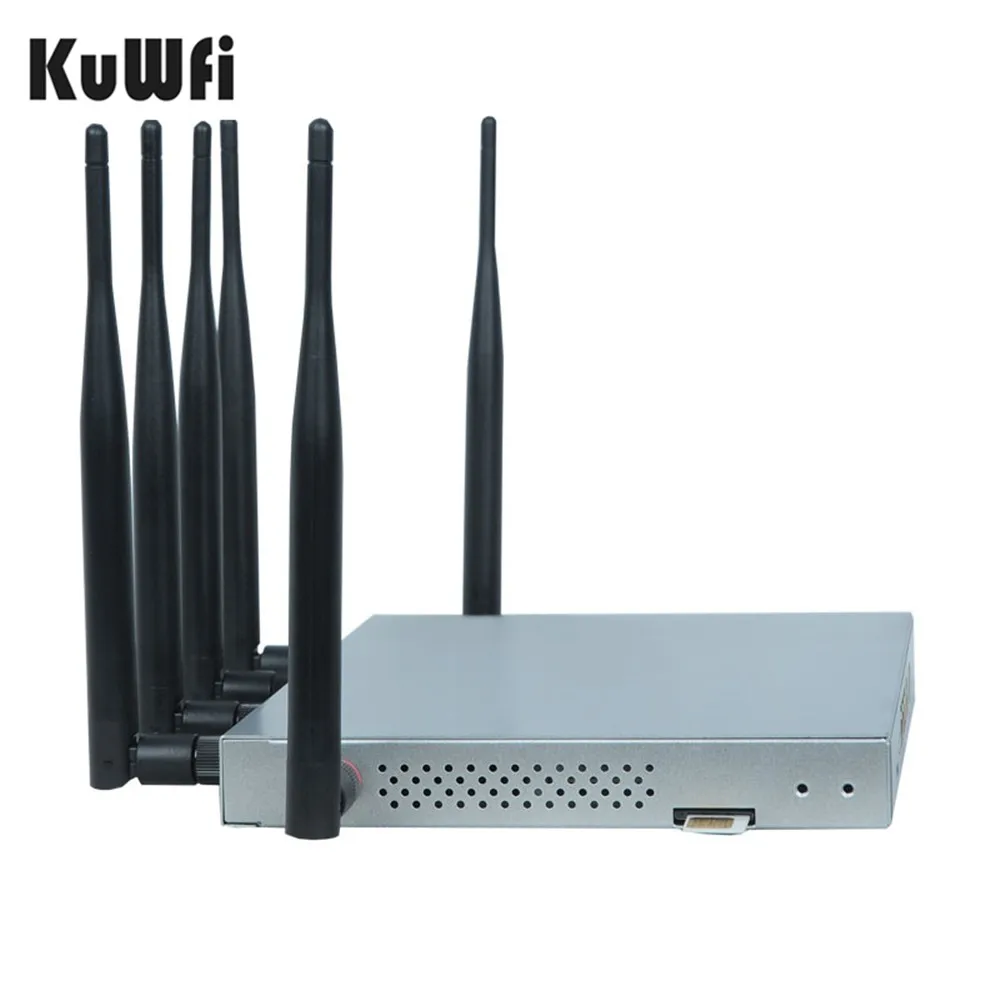

English Firmware 1200Mbps 4G LTE Wireless WiFi Router 802.11AC Dual-band Openwrt Router Wifi Repeater With SIM Card Slot Gigabit

_01

 OPENWRT firmware
 (Suitable for engineer developing, User Interface: not that friendly for end users)

Noted:

This item with 2 Modules for your chooice ,pls must be clear below which module frequency suitable for your country before you make order.thanks!


 OPENWRT firmware

 (Suitable for engineer developing, User Interface: not that friendly for end users)

Noted:

This item with 3 Modules for your chooice ,pls must be clear below which module frequency suitable for your country before you make order.thanks!

Module 1:(EC25-E Mini PCIe)---For Most of countries in the world

4G FDD LTE:B1(2100Mhz)/B3(1800Mhz)/B5(850Mhz)/B7(2600Mhz)/B8(900Mhz)/B20(800Mhz)

4G TDD LTE:B38 (2600Mhz)/ B40(2300Mhz) /B41(2500Mhz)

WCDMA:B1(2100Mhz)/B5(850Mhz)/B8(900Mhz)

GSM:900Mhz/1800Mhz


Module 2:(EC25-A Mini PCIe)---For USA/CA/Mexico countries.

FDD LTE: 1900Mhz(b2)/1700Mhz(B4)/700Mhz(B12)

UMTS: 1900(B2)/1700Mhz(B4)/ 850Mhz(B5)

GSM: 850Mhz/1900MHz

Hardware:

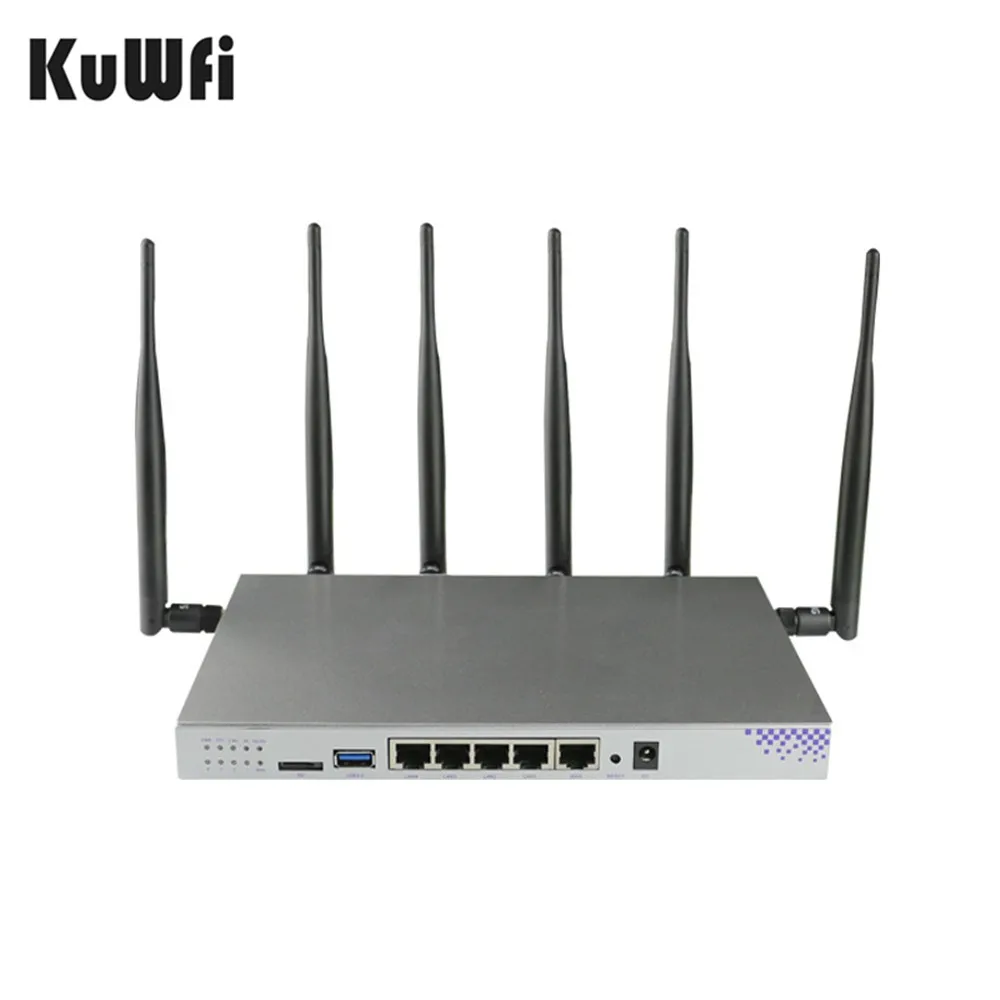

WG3526-4G is using MTK7621 solution, up to 880MHz. It supports 5*10/100/1000M RJ45 port, 1*USB 3.0, 1* internal PCI-E interface, 1*Micro SD Card, SATA3.0 and so on.

Wireless:

It is compatible with IEEE802.11AC/N/G/B/A wireless network protocol. The max wireless transfer rate up to 1200Mbps. The external 4 pcs 5dBi antennas can make good wireless performance and broader coverage

Software:

The original OpenWrt based on Linux is including 802.11ac, IPV6 and Win8 certification, which provides drivers to support VPN upper layer software, audio and touch screen. L7 QoS can work with on-chip hardware accelerators HNAT/HQoS smoothly, it also provides Auto QoS function for Internet and SMB routers.

Spec:

New dual-core network chipset MT7621, up to 880MHz
Provides 5* 10/100/1000Mbps RJ45 ports
Provides 1* external USB 3.0
Provides 1* PCI-E interface to supports 3G/4G
Provides 1* Micro SD Card
Compatiable with IEEE IEEE802.11AC/N/G/B/A wireless standard
Wireless transmission rates is up to 1200Mbps


_02

2594707790_87478062594716497_87478062599494119_8747806Dual-core-SIM-slot-802-11n-openwrt (1)Dual-core-SIM-slot-802-11n-openwrt (2)Dual-core-SIM-slot-802-11n-openwrt (3)Dual-core-SIM-slot-802-11n-openwrt802-11AC-dual-band-3G-4G-OpenWrt-Firmware-WiFi-Router-with-sim-card-slot-support-TD (2)

QQ20170802151731HTB1_FOsPFXXXXbyXpXXq6xXFXXXfHTB1N5edPFXXXXc6XFXXq6xXFXXXSProduct User Manual

1

2

3

4

5

6

7

9

10

11

12





3G 4G Module Setting Guide

1. Connect to all the antennas correctly.

2. The sim card must insert firstly, and the chip of the sim card should be upward, then connect to the power. If you need to remove the sim card, in order to avoid damaging the SIM card, please remember to cut off the power before you remove sim card.



001

002

003



Upgrade Firmware

If you can access into the recovery mode, that means the router hardware is ok. You can flash the firmware I sent you.

But if you can not access into the recovery mode, sorry, you have damaged the router hardware.

1

2



_05 - _06_07_08_09_10_11_12
